Using a Non-Exchange Server as an Exchange Database Availability Group File Share Witness

February 7, 2013 by Paul Cunningham 30 Comments

In my recent article on installing an Exchange Server 2013 Database Availability Group I gave the example of using a Windows Server 2012 server that is not installed as an Exchange server as the file share witness for the DAG.

In this article I will take a more detailed look at the requirements for that scenario.

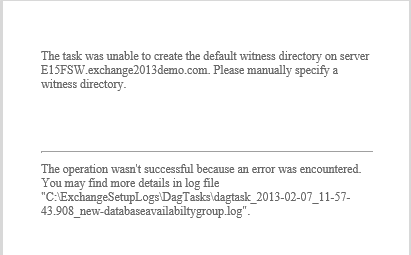

To begin with, this is what you would likely see if you tried to use a Windows Server 2012 server as the file share witness after a default installation of the operating system.

exchange-2013-dag-fsw-01

The task was unable to create the default witness directory on server [your server name]. Please manually specify a witness directory.

If you take that advice and specify a witness directory you will still receive an error.

exchange-2013-dag-fsw-02

The Exchange Trusted Subsystem is not a member of the local Administrators group on specified witness server [your server name].

Unable to access file shares on witness server [your server name]. Until this problem is corrected the database availability group may be more vulnerable to failures. You can use the Set-DatabaseAvailabilityGroup cmdlet to try the operation again. Error: The network path was not found.

At this point you have two options for proceeding.

  1. You can remove the newly created DAG (since it has just been created and doesn’t yet have members), fix the requirements I’m about to list below, and then create the DAG again; or
  2. Fix the requirements below and run Set-DatabaseAvailabilityGroup to correct the DAG configuration.

For this example I’ll be taking the second approach, but you can choose either one.

There are three requirements we need to meet:

  • The Exchange Trusted Subsystem group in Active Directory must be added to the local Administrators group on the server that will be the file share witness
  • The File Server feature (FS-FileServer) must be installed on the file share witness
  • File and Print Sharing must be allowed through the Windows Firewall if the firewall is enabled

So, first add the Exchange Trusted Subsystem group to local Administrators on the file share witness.

exchange-2013-dag-fsw-03

Next, install the FS-FileServer feature by running the following command in PowerShell.

1
2
3
4
5
PS C:\> Add-WindowsFeature FS-FileServer

Success Restart Needed Exit Code      Feature Result
------- -------------- ---------      --------------
True    No             Success        {File and iSCSI Services, File Server}


Finally, check the Windows Firewall is configured to allow File and Printer Sharing.

exchange-2013-dag-fsw-04

Note: the File and Printer Sharing step may not need to be manually performed, as it appears that Exchange may enable it automatically anyway. However given that it is a requirement I still perform the manual step anyway.

If you’re following the second approach as I am you can now run Set-DatabaseAvailabilityGroup to fix the file share witness configuration for the DAG.

1
[PS] C:\>Set-DatabaseAvailabilityGroup E15DAG -WitnessServer E15FSW -WitnessDirectory C:\FSW_E15DAG


If successful then you will may or may not see the file share witness directory depending on whether you manually specified it.

  • if you did not manually specify the file share witness directory then a directory of C:DAGFileShareWitnesses will be created automatically, however it will remain empty until you add DAG members
  • if you did specify a witness directory then it will not be created until there are DAG members, after which time it will also have the witness folder added

exchange-2013-dag-fsw-07

When you have all of those requirements met and you’re recreating the DAG from scratch then the DAG will be successfully created. However at the moment you will still see the following error:

exchange-2013-dag-fsw-05

The Exchange Trusted Subsystem is not a member of the local Administrators group on specified witness server [your server name].

This error is a bug, as it was in Exchange Server 2010 under the same scenario. Until the bug is corrected in a future update you can refer to the DAG task log files in C:ExchangeSetupLogsDAGTasks.

A successful DAG creation will have log entries similar to this:

1
2
3
4
5
6
7
8
9
10
11
12
new-databaseavailabiltygroup started on machine E15MB1.
[2013-02-07T12:11:51] new-dag started
[2013-02-07T12:11:51] commandline:         $scriptCmd = {& $wrappedCmd @PSBoundParameters }

[2013-02-07T12:11:51] Option 'Name' = ''.
[2013-02-07T12:11:51] Option 'WitnessServer' = 'E15FSW'.
[2013-02-07T12:11:51] Option 'WitnessDirectory' = 'C:FSW_E15DAG'.
[2013-02-07T12:11:51] Option 'WhatIf' = ''.
[2013-02-07T12:11:51] The Exchange Trusted Subsystem is not a member of the local Administrators group on specified witness server E15FSW.
[2013-02-07T12:11:51] New-DatabaseAvailabilityGroup passed the initial checks.
[2013-02-07T12:11:52] New-DatabaseAvailabilityGroup completed successfully.
new-databaseavailabiltygroup explicitly called CloseTempLogFile().


An unsuccessful DAG creation will have log entries similar to this:

1
2
3
4
5
6
7
8
9
10
11
12
new-databaseavailabiltygroup started on machine E15MB1.
[2013-02-07T11:57:43] new-dag started
[2013-02-07T11:57:43] commandline:         $scriptCmd = {& $wrappedCmd @PSBoundParameters }

[2013-02-07T11:57:43] Option 'Name' = ''.
[2013-02-07T11:57:43] Option 'WitnessServer' = 'E15FSW'.
[2013-02-07T11:57:43] Option 'WitnessDirectory' = ''.
[2013-02-07T11:57:43] Option 'WhatIf' = ''.
[2013-02-07T11:58:06] The operation wasn't successful because an error was encountered. You may find more details in log file "C:ExchangeSetupLogsDagTasksdagtask_2013-02-07_11-57-43.908_new-databaseavailabiltygroup.log".
[2013-02-07T11:58:06] WriteError! Exception = Microsoft.Exchange.Management.Tasks.DagFswUnableToBindWitnessDirectoryException: The task was unable to create the default witness directory on server E15FSW.exchange2013demo.com. Please manually specify a witness directory.
   at Microsoft.Exchange.Management.Common.FileShareWitness.Initialize()
   at Microsoft.Exchange.Management.SystemConfigurationTasks.NewDatabaseAvailabilityGroup.InternalValidate()


And obviously a successully created DAG will be visible in the Exchange Admin Center after the task completes.

exchange-2013-dag-fsw-06

For more on Exchange Server 2013 Database Availability Groups check out the article series that begins here.

Exchange Server DAGs, Database Availability Group, Exchange 2013, File Share Witness, High Availability, Mailbox Server
